Allen & Heath GL-3000

De GL-3000 is een mengtafel uit de bekende GL serie van Allen & Heath. Met 24 kanalen, 8 auxen, 8 groepen en 2 matrixen is de GL-3000 een veelzijdige mengtafel die alles aan kan.

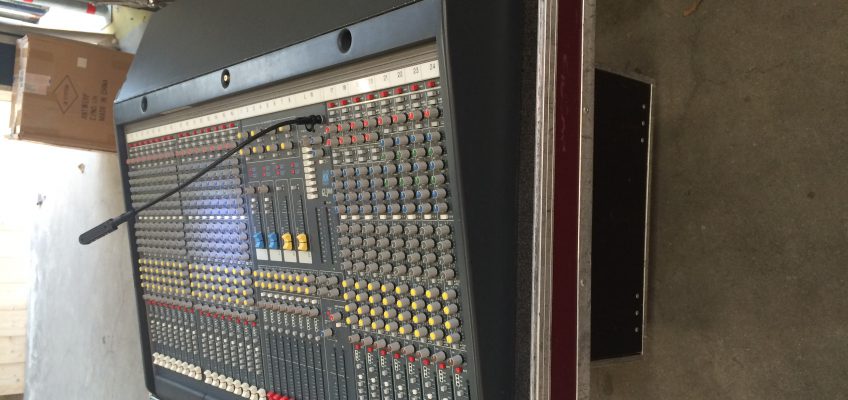

Mengtafel wordt geleverd met led lampje en losse voeding, alles zit in stevige tourcases.

Productspecificaties

• Dual functionality. GRP/Aux mode switches reverse aux master section with the group faders, giving up to 8 monitor sends with inserts on 100mm faders
• Format: 24 channels
• 8 audio groups. Assignable from paired routing buttons and pan from channel. Groups 5-8 have XLR outputs, 1-4 are to the mix only. All have inserts
• 8 auxiliary sends. Switchable pre/post fade in blocks: 1-4, 5-8
• 12×2 matrix fed from groups, LR busses and stereo returns
• 4 band EQ with separate sweep and cut/boost on mid bands. HPF @ 100Hz is switchable
• Stereo channels: 4 stereo inputs to the right of the master section. Mic or line source on 2 XLRs or 2 TRS jacks
• 2 stereo returns on TRS line inputs with 60mm fader and routing to group, LR and matrix
• 12 segment bargraph meters on L&R. 4 segment leds on GRP/Aux masters. 3 segment leds on channels. Optional VU meterbridge was available for 24-40 channel versions
• Lamp socket (BNC)
• PSU. Console was supplied with RPS9 rack mounting (2U) linear power supply
